Isporuka: 5 radnih dana
Jamstvo: 24mjeseci

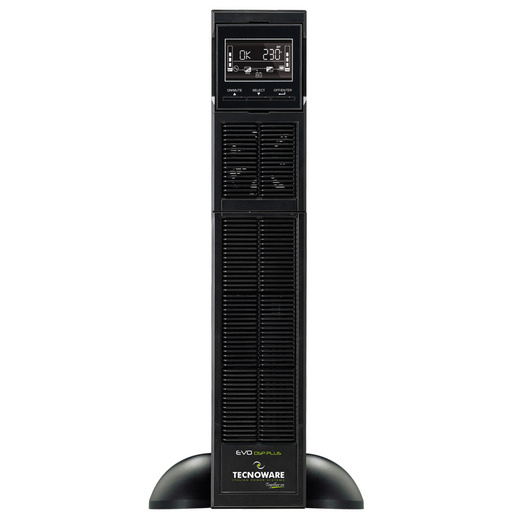

UPS EVO DSP PLUS 2,400 RACK TOWER – Power 2,400 VA PF 0,9. On Line Technology (VFI) DSP, Efficiency 94%, Input / output 230 / 230Vac 50 / 60Hz, 8 IEC C13 sockets, dimensions 43.8×8.8×41 cm (2U), weight 19 Kg, bacup time 10 min, including 4 batteries of 12Vdc 9Ah. Positioning in 19″ rack or tower, multifunction graphic LCD display, static bypass, hot swap battery, EPO connector for USB and RS232 communication ports for UPS control and on / off programming via the free TecnoManager software. SNMP or Dry Contact card (optional).
Cijena:
602,31 € s PDV-om
UPS 2400VA/2160W On-Line Double Conversion, Rack/Tower, Sinewave, 8xC13
UPS EVO DSP PLUS 2,400 RACK TOWER – Power 2,400 VA PF 0,9. On Line Technology (VFI) DSP, Efficiency 94%, Input / output 230 / 230Vac 50 / 60Hz, 8 IEC C13 sockets, dimensions 43.8×8.8×41 cm (2U), weight 19 Kg, bacup time 10 min, including 4 batteries of 12Vdc 9Ah. Positioning in 19″ rack or tower, multifunction graphic LCD display, static bypass, hot swap battery, EPO connector for USB and RS232 communication ports for UPS control and on / off programming via the free TecnoManager software. SNMP or Dry Contact card (optional).
Complete protection from blackout, voltage fluctuations (overvoltages and undervoltages), lightning (with upstream arrester), frequency variations, surges, harmonics, voltage distortions
Recommended for Data Centers, Local Area Network (LAN ), Electro-medical, Industry processes, Virtual servers, Pellet stoves, Thermo-fireplaces, Boilers for home heating

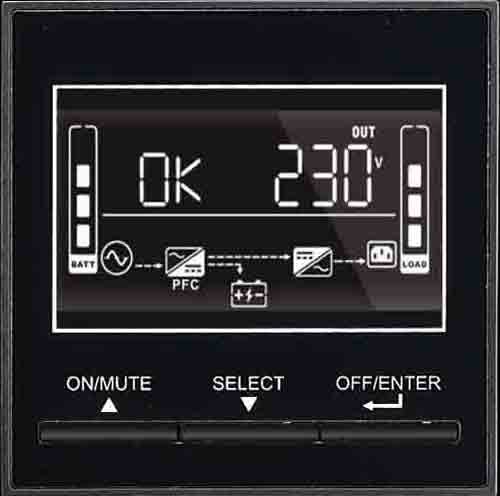

Convertible format (Rack 19″ or Tower) with adjustable display
Hot Swap batteries
Intelligent slot for SNMP card o Dry Contact
On-Line Double Conversion technology transformerless (VFI-SS-111)
Active PFC circuit (0.99)
Compatibility with generating set
Battery charging system managed by microprocessor
Static bypass
Vrsta izvršenja Rackmount / Tower
Fiscalization 2.0 Article G46.50.22
Glavni ulazni napon 230 V
Glavni izlazni napon 230 V
Maksimalna snaga u W 2.16 kW
Maksimalna snaga u VA 2.4 kVA
Vrsta proizvoda ili komponente Uninterruptible power supply (UPS)
Vrsta baterije Lead-acid battery
Provided equipment Lead-acid battery
Broj utora ispunjenih baterijom 0
Broj slobodnih utora za baterije 0
Količina zamjenjivih baterija 0
Broj slobodnih utora za napajanje 0
Broj ispunjenih utora za napajanje 0
Redundant Ne
Frekvencija mreže 50/60 Hz
Granice ulaznog napona 110…300 V
Maksimalna konfigurabilna snaga u VA 2400 VA
Maksimalna konfigurabilna snaga u W 2160 W
Izlazna frekvencija 50/60 Hz (selectable)
Vrsta UPS-a Double conversion online
Tip vala Sine wave
Vrijeme prijenosa 0 ms
Certifikacije proizvoda CE
Standardi Low Voltage Directive IEC EN 62040-1; EMC Directive IEC EN 62040-2; classification IEC EN 62040-3
Temperatura zraka za rad 0..55 °C
Relativna vlažnost 0…95 %
Radna nadmorska visina 0…3000 m
Relativna vlažnost skladištenja 0…95 %
Nadmorska visina skladištenja 0…3000 m
